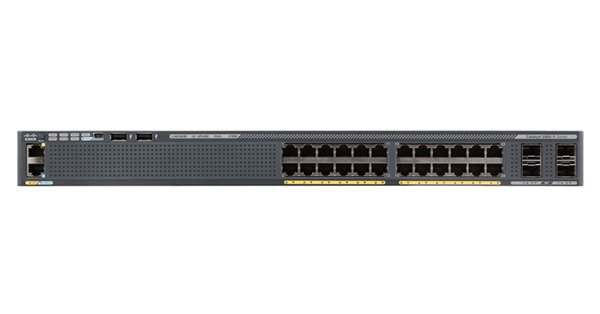

WS-C2960X-24PD-L Cisco Catalyst 2960X Stackable 24 Port GE, 2 SFP+ LAN Base
Gọi lại cho tôi
Thông số kỹ thuật chi tiết của WS-C2960X-24PD-L:
|
Hardware specifications |
|
|
Flash Memory |
128 MB |
|
DRAM |
512 MB |
|
CPU |
APM86392 600 MHz dual core |
|
Console ports |
USB (Type B), Ethernet (RJ-45) |
|
Storage interface |
USB (Type A) for external flash storage |
|
Network management interface |
10/100 Mbps Ethernet (RJ-45) |
|
Interface |
24 10/100/1000 PoE+ Ethernet ports |
|
Uplink interfaces |
2 x 10Gb SFP+ |
|
Performance and scalability |
|
|
Forwarding bandwidth |
108 Gbps |
|
Switching bandwidth |
216 Gbps |
|
Maximum active VLANs |
1023 |
|
VLAN IDs available |
4096 |
|
Maximum Transmission Unit (MTU)-L3 packet |
9198 bytes |
|
Jumbo frame - Ethernet frame |
9216 bytes |
|
Forwarding rate: 64-byte Layer 3 packets |
95.2 Mpps |
|
Resource |
|
|
Unicast MAC |
16,000 |
|
ARP Entries |
8000 |
|
IPv4 unicast direct routes |
2000 |
|
IPv4 unicast indirect routes |
1000 |
|
IPv6 unicast direct routes |
2000 |
|
IPv6 unicast indirect routes |
1000 |
|
IPv4 multicast routes and IGMP groups |
1000 |
|
IPv6 multicast groups |
1000 |
|
IPv4 QoS ACEs |
500 |
|
IPv6 QoS ACEs |
500 |
|
IPv4 security ACEs |
600 |
|
IPv6 Security ACEs |
600 |
| Voltage and power ratings | |
|
Predicted reliability (MTBF in hours**) |
325,780 |
|
Power rating |
0.47 kVA |
|
DC input voltages |
12V - 3A / 53V - 8A |
|
Input voltage and current |
100 to 240 VAC/5A to 2A/50 to 60 Hz |
|
Available PoE power |
370W |
|
Maximum number of PoE+ |
12 ports up to 30W 24 ports up to 15.4W |
|
Dimensions |
|
|
Inches (H x D x W) |
1.75 x 14.5 x 17.5 |
|
Centimeters (H x D x W) |
4.5 x 36.8 x 44.5 |
|
Pounds |
12.7 |
|
Kilograms |
5.7 |
|
Environmental ranges |
|
|
Operating temperature up to 10,000 ft (3000 m) |
23º to 113ºF / -5º to 45ºC |
|
Operating altitude (Feet/Meters) |
Up to 10,000/Up to 3000 |
|
Operating relative humidity |
10% to 95% noncondensing |
|
Safety and compliance (Safety) |
UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1 |
